Rescue EZ-Wire PCS Condensor Fan Motor, 1/4-1/8 HP, 825RPM, Single Phase, One Speed, 208-230V

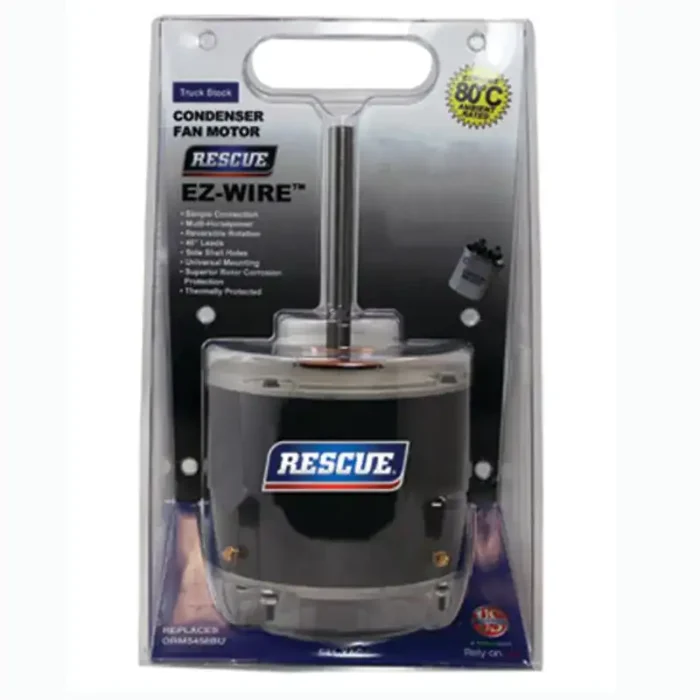

U.S. Motors 5431 – Rescue® EZ-Wire PCS Condenser Fan Motor, 1/4–1/8 HP, 825 RPM

The U.S. Motors 5431 Rescue® EZ-Wire motor is a permanent split capacitor (PSC) condenser fan motor designed for residential and light commercial air conditioning systems. Built with a dual horsepower rating (1/4–1/8 HP) and operating at 825 RPM, this motor supports a wide range of 48-frame condenser fan applications requiring lower-speed airflow and efficient power delivery.

With EZ-Wire™ technology, the motor includes color-coded leads for simplified field installation, reducing wiring time and minimizing errors. The unit is configured for single-phase, 208–230V operation and includes features designed to meet the performance and reliability expectations of HVAC professionals in the field.

Professional Features

• ✅ Multi-HP Flexibility – Dual-rated for 1/4 and 1/8 HP applications, allowing fewer SKUs on service trucks while increasing installation flexibility.
• ✅ EZ-Wire™ Pre-Labeled Leads – Clearly marked wiring simplifies terminal identification and installation procedures.
• ✅ PSC Design – Offers improved energy efficiency and cooler operating temperatures compared to shaded-pole motors.
• ✅ Air-Over Enclosure – Open design allows effective cooling via system airflow, supporting extended motor life.
• ✅ Sleeve Bearing Configuration – Rated for horizontal shaft-down mounting; low-noise, economical bearing choice for condenser fan service.

Technical Specifications

• Horsepower: 1/4–1/8 HP (dual-rated)
• Speed: 825 RPM
• Voltage: 208–230V
• Phase: Single Phase
• Frame Size: 48Y
• Mounting: Belly band or stud compatible
• Rotation: Reversible (CW/CCW)
• Bearings: Sleeve
• Enclosure: Open Air Over (OAO)

Installation Notes

The 5431 motor is designed as a field-replacement option for OEM condenser fan motors requiring 825 RPM. Before installation, verify rotation direction and ensure compatibility with the system’s blade configuration. Use an appropriately sized run capacitor (not included) per the motor label.

Standard mounting hardware and capacitor brackets may be reused from the original unit. Verify shaft dimensions and blade hub set screw fit prior to reassembly. This model is suited for ambient conditions up to 70°C in properly ventilated condenser compartments.

Application Scope

Compatible with residential split-system condensers, package units, and rooftop systems utilizing PSC motors in the 1/4–1/8 HP, low-RPM range. Ideal for technicians performing service replacements in units requiring non-standard speed and high system efficiency.

Included Product Features

• ✅ Color-coded EZ-Wire™ leads for rapid installation
• ✅ Field-reversible shaft rotation
• ✅ Mounting adaptable to common 48-frame configurations
• ✅ UL recognized component; conforms to motor industry performance standards

Contractor Advisory

Use caution when reusing fan blades; verify balance and secure set screw engagement. Always confirm capacitor µF rating matches motor label for reliable startup. Periodically inspect sleeve bearings during seasonal service intervals and replace if excess axial play or noise is present.
