M18 Combo Kit, 1/2″ Hammer Drill and 1/4″ Hex Impact Driver (Includes Battery and Charger)
-
Official retailer
-
Quality guaranteed
-
Free delivery from $99
-
Free returns is available
Milwaukee 3697-22 – M18 FUEL™ 2-Tool Combo Kit: Hammer Drill and Impact Driver
The Milwaukee 3697-22 M18 FUEL™ 2-Tool Combo Kit includes two core tools designed for high-performance drilling and fastening in demanding job site conditions. This set features the M18 FUEL™ 1/2″ Hammer Drill (2904-20) and the M18 FUEL™ 1/4″ Hex Impact Driver (2953-20), both built with brushless POWERSTATE™ motors for extended life and maximum power under load.
Each tool incorporates REDLINK PLUS™ intelligence, providing advanced communication between the motor and the battery for overload protection, efficiency, and durability. Both tools operate on the M18™ REDLITHIUM™ battery platform and are suitable for a wide range of applications in metal, wood, concrete, and fastener-heavy tasks.

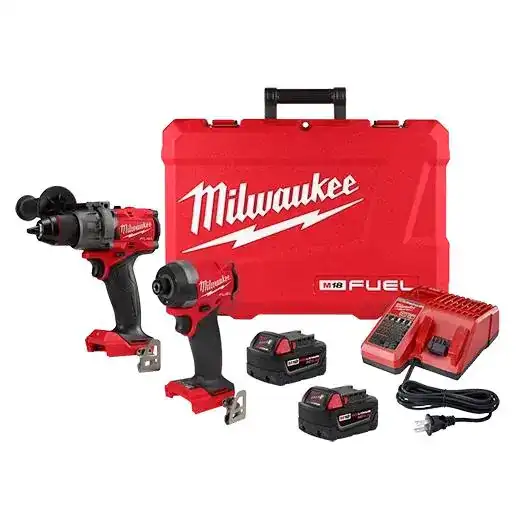

Kit Contents
- M18 FUEL™ 1/2″ Hammer Drill (2904-20)
- M18 FUEL™ 1/4″ Hex Impact Driver (2953-20)
- (2) M18™ REDLITHIUM™ XC5.0 Extended Capacity Battery Packs
- M18™/M12™ Multi-Voltage Charger
- Contractor Carrying Case
Key Features
- POWERSTATE™ Brushless Motor: Optimized for superior power, runtime, and longevity
- REDLINK PLUS™ Intelligence: Advanced electronics for overload protection and efficient power delivery
- AutoStop™ Control: Integrated anti-kickback feature in hammer drill for added operator safety
- Compact Form Factor: 6.9″ hammer drill and 4.47″ impact driver length for improved access in tight areas
- High Torque Output: Impact driver delivers up to 2,000 in-lbs of torque and 3,900 IPM
- Multiple Drive Modes: Four-mode DRIVE CONTROL™ on the impact driver for precision fastening
Technical Specifications
- Hammer Drill: 1/2″ all-metal chuck, 1,400 in-lbs max torque
- Impact Driver: 1/4″ hex chuck, 2,000 in-lbs torque, 3,900 IPM
- Battery: M18™ REDLITHIUM™ XC5.0Ah (2 included)
- Charger: M18™/M12™ compatible
- Weight (with battery): Approx. 3.3 lbs (drill), 2.2 lbs (driver)
Usage Notes
Recommended for framing, electrical rough-in, MEP installation, concrete anchoring, and general construction applications. Tools are compatible with all Milwaukee M18™ batteries. Avoid use with non-genuine battery packs to ensure tool longevity and safety.
Safety & Handling
- Utilize AutoStop™ feature during high-torque drilling to reduce wrist injury risk
- Inspect tool housings and battery terminals regularly for job site wear
- Follow all ANSI/OSHA PPE guidelines when operating powered drills and drivers
