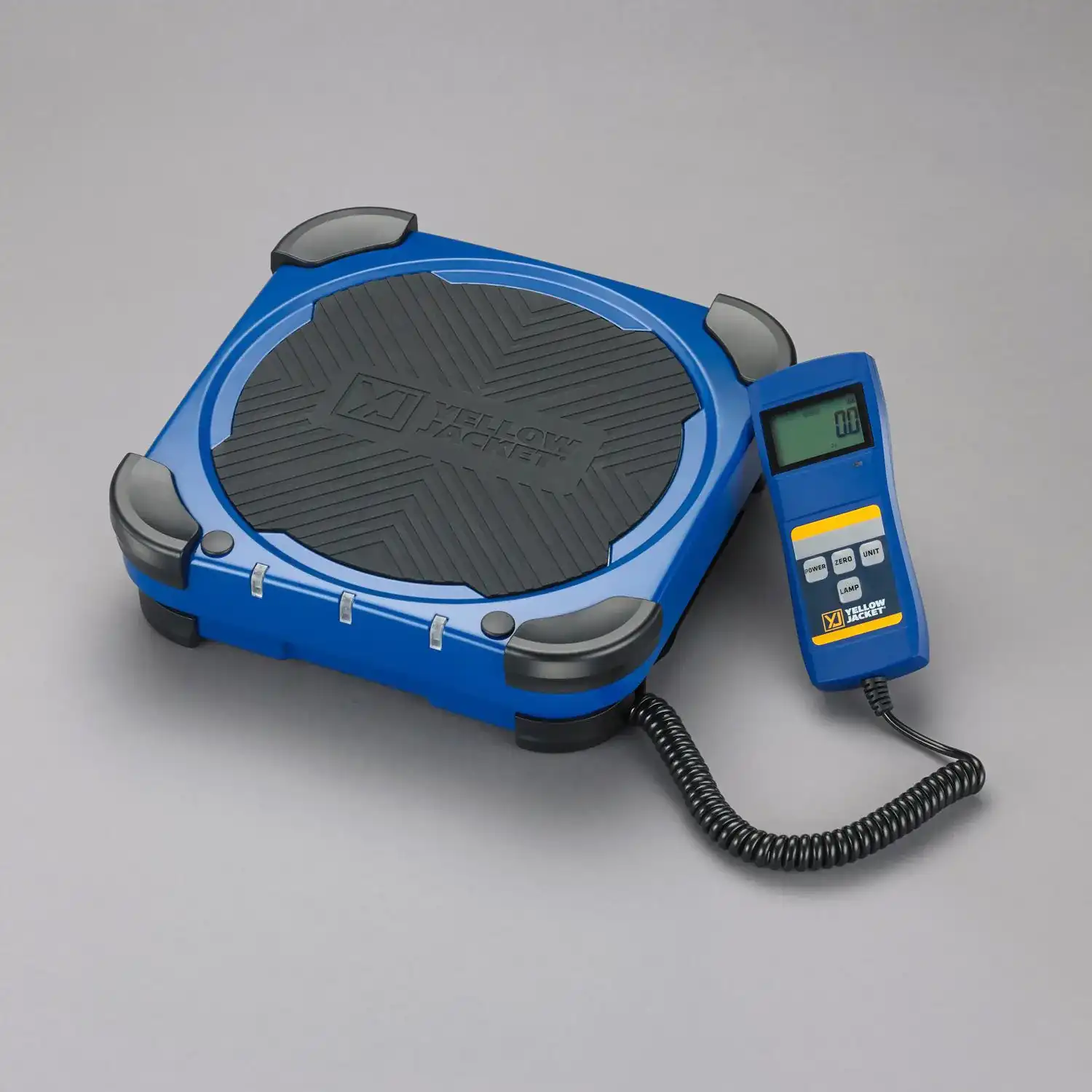

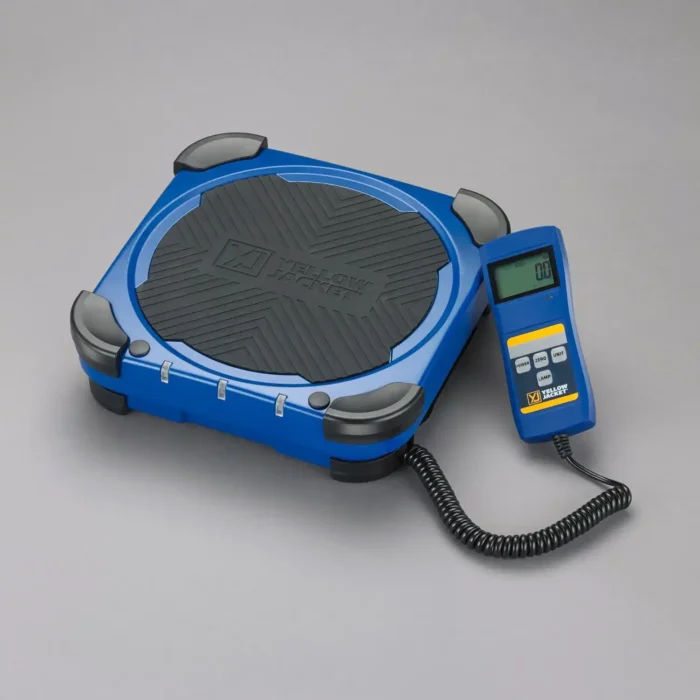

Yellow Jacket 68862 Digital Refrigerant Charging Scale – 220 lb. Capacity, 0.1 oz. Resolution
The Yellow Jacket 68862 digital charging scale is engineered for precision refrigerant measurement in HVAC/R service applications. With a 220-pound capacity and fine 0.1 oz. resolution, this scale is suitable for critical charging, recovery, and weight-based diagnostics in residential and commercial systems.
Product Specifications
- Maximum Capacity: 220 lbs. (100 kg)
- Measurement Resolution: 0.1 oz. / 0.005 lbs. / 2 g
- Accuracy: ±0.5% of reading
- Battery Runtime: Up to 30 hours continuous operation (alkaline)
- Display: High-contrast backlit LCD for improved visibility in field conditions
- Platform Dimensions: 9″ x 9″ low-profile design
Key Functional Features
- Field Calibration: Scale can be recalibrated using certified reference weights
- Programmable Charging: Target weight setting with audible alarm upon reaching setpoint
- Integrated Memory: Stores last operational settings for rapid jobsite deployment
- Flexible Display Module: Control module can be mounted or set on flat surfaces
Applications
Designed for use in HVAC/R charging, recovery, and system diagnostics. Compatible with all standard refrigerants and recovery cylinder types. Recommended for use with systems requiring weight-based refrigerant management in accordance with EPA standards and OEM specifications.
Operational Guidance
- Use on level, vibration-free surfaces to maintain measurement accuracy
- Ensure load is centered on platform during cylinder placement
- Verify scale is tared before charging or recovery begins
- Inspect platform, wiring, and display module prior to field use
Advantages for Technicians
- Jobsite Portability: Lightweight and compact for service vehicle storage
- Long Duty Cycles: Extended battery life supports uninterrupted field use
- Operational Flexibility: Suitable for fixed station or mobile refrigerant handling setups
The Yellow Jacket 68862 is a digital scale designed to meet the accuracy and durability requirements of HVAC/R professionals. Its programmable functions, rugged housing, and high-visibility display make it a reliable tool for high-precision refrigerant handling tasks.
