Bath Drain Trip Lever for Roman Tub, Chrome

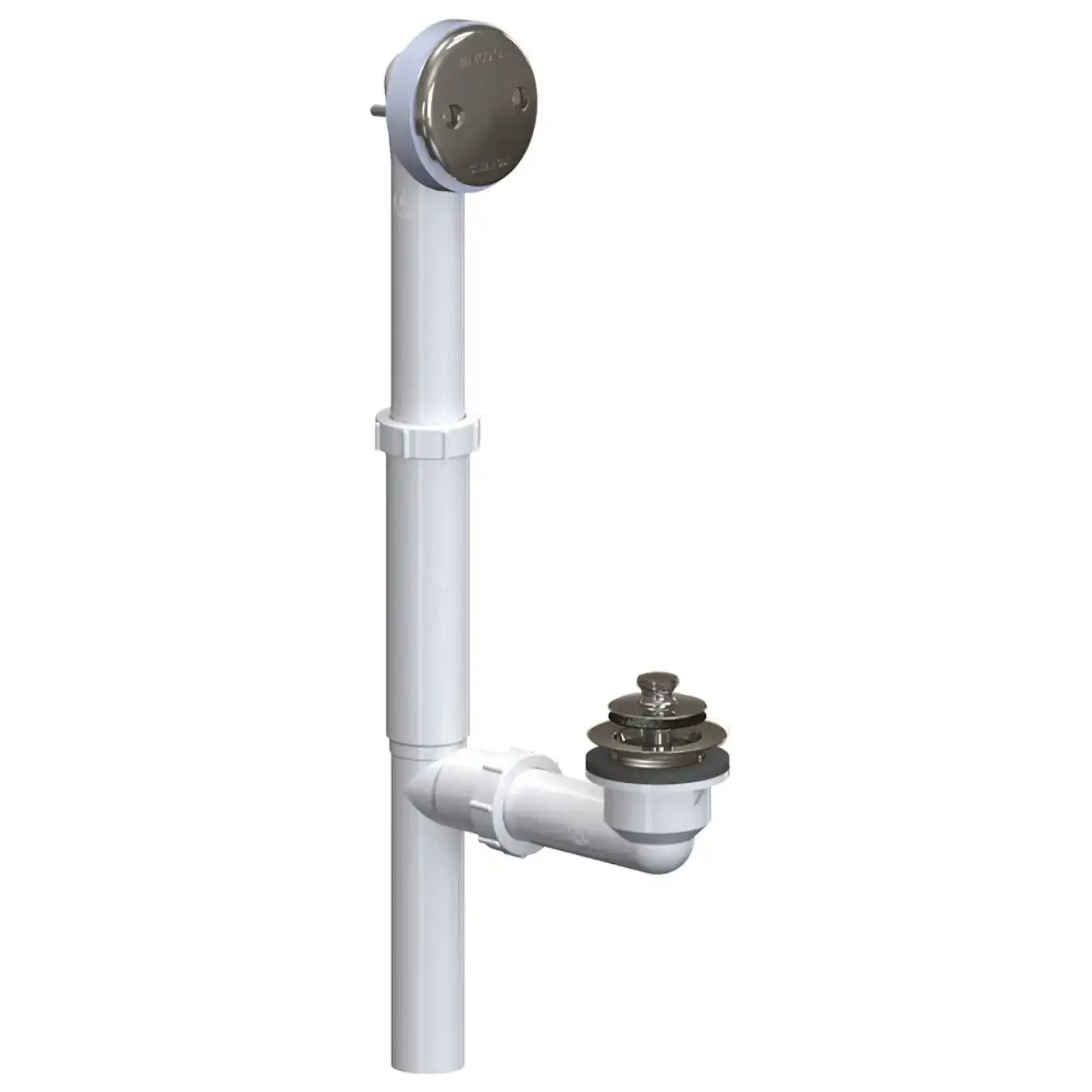

Watco 500-TQ-PVC-CP-EXT 5 – Trip Lever Bath Waste Assembly with Chrome Finish

The Watco 500-TQ-PVC-CP-EXT 5 is a trip lever bath waste designed for use in standard residential and commercial bathtub installations. Featuring a PVC body and chrome-plated metal components, this assembly supports efficient drainage and provides corrosion resistance in exposed areas. The unit is compatible with tub heights ranging from 14 to 16 inches and is engineered for both cast iron and acrylic/plastic tubs.

This model includes a metal strainer body, a trip lever faceplate, and an extended overflow elbow with a retainer plate to simplify alignment and secure fitment during rough-in or retrofit installations. The assembly meets durability expectations for multifamily, hospitality, and high-traffic residential environments.

Application Highlights

• ✅ Standard Rough-In Range – Designed for tub installations with heights between 14 and 16 inches.
• ✅ Trip Lever Mechanism – Provides mechanical control over stopper operation through the overflow faceplate.
• ✅ Chrome-Plated Finish – Corrosion-resistant exposed components maintain appearance under repeated use.
• ✅ Retainer Plate Included – Improves overflow pipe installation accuracy and stability, particularly during retrofit scenarios.
• ✅ Cross-Material Compatibility – Suitable for integration with cast iron, fiberglass, and plastic tubs.

Technical Specifications

• Model: 500-TQ-PVC-CP-EXT 5
• Waste and Overflow Type: Trip Lever
• Tub Height Range: 14″ – 16″
• Material Composition: PVC body with metal faceplate and strainer
• Finish (Exposed Parts): Polished Chrome

Installation Notes

Installation should be performed by qualified plumbing contractors to ensure code compliance and system integrity. The included retainer plate facilitates alignment of the overflow elbow. Connections must be solvent-welded per standard PVC joining procedures. Confirm fit prior to tile or enclosure work to avoid dimensional conflicts.

Contractor Considerations

This unit is appropriate for replacement or new construction and is frequently used in multi-unit housing and lodging installations where reliability and serviceability are critical. The modular design aids in job site adaptability, reducing rework associated with dimensional tolerances.

Performance Features

• ✅ Corrosion Resistance – Chrome finish and non-metallic body reduce susceptibility to degradation over time.
• ✅ Field-Ready Configuration – Delivered with overflow plate and retainer for streamlined setup.
• ✅ High-Cycle Durability – Trip lever and linkage designed to withstand repeated actuation in commercial-grade applications.
