7 Day, 5/1/1 or Non-Programmable Thermostat, 1 Heat, 1 Cool Conventional

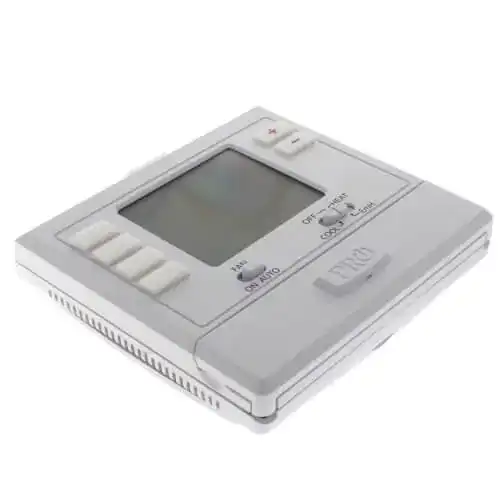

Pro1 T725 Thermostat – 7-Day Programmable, Dual-Powered Control for HVAC Systems

The Pro1 T725 is a 7-day programmable thermostat designed for single-stage and multi-stage HVAC applications. With support for up to 2 heat and 1 cool conventional or heat pump systems, it offers flexible scheduling and precise control. The unit includes optional WiFi capability for expanded system management when paired with compatible modules.

Key Features

• System Compatibility: Compatible with up to 2 heat/1 cool conventional or heat pump systems
• Power Supply: Operates on 24VAC (hardwired) or battery-powered configuration
• WiFi Option: Supports optional WiFi module for remote access (sold separately)
• Programmable Operation: 7-day scheduling allows separate heating and cooling settings for each day
• Display: Blue backlit screen for improved visibility in low-light environments
• Swing Settings: Adjustable heating and cooling differential from 0.2°F to 2.0°F

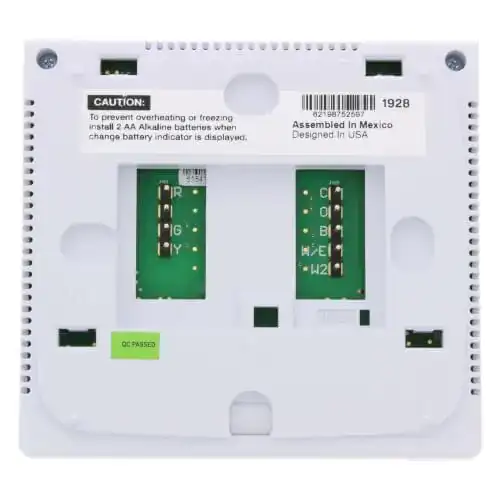

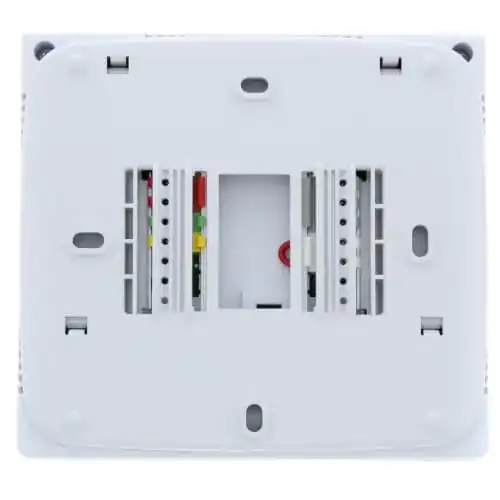

• Terminal Configuration: Color-coded terminals and universal subbase for simplified installation

Technical Specifications

• Temperature Range: 41°F to 95°F (displayed)
• Load Rating: 1.0 amp per terminal; 1.5 amps combined maximum
• Compressor Delay: Built-in 5-minute short-cycle protection

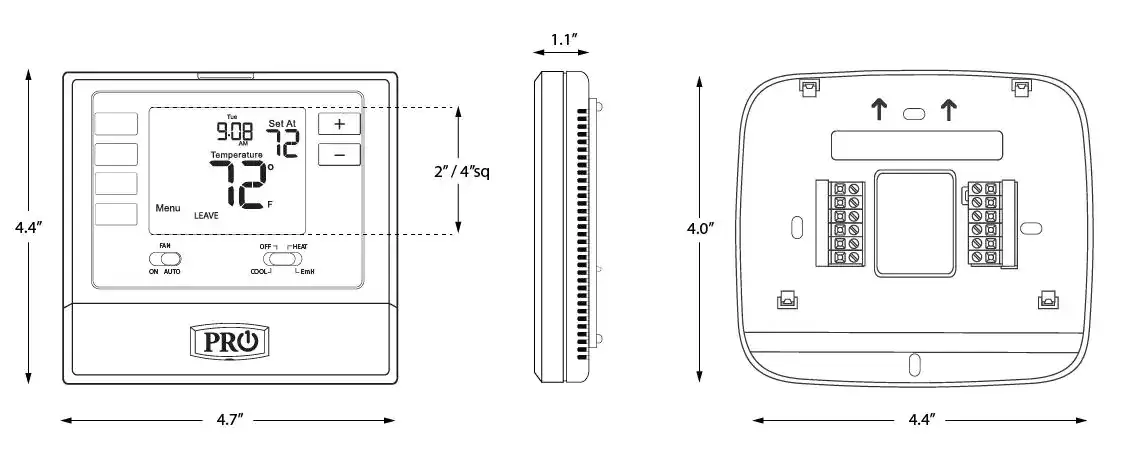

• Installation: Wall-mounted with standard footprint and terminal layout
• Power Method: 24VAC or 2 x AA batteries

Installation Considerations

The T725 is designed for ease of installation with a universal mounting subbase and clear terminal markings. Professional installation is recommended to ensure system compatibility and adherence to electrical codes. Installer access to WiFi setup (if used) requires network credentials and mobile configuration tools.

Application Notes for Contractors

Engineered for professional use, the T725 offers a balance of advanced scheduling, flexible system support, and WiFi upgrade capability. Ideal for light commercial or residential installs where system control and scheduling flexibility are required. The thermostat also offers multi-unit control functionality when paired with Pro1’s remote management tools.

Summary of Features

• Backlit Digital Display: 4 sq. inch blue screen with push-button interface
• Adjustable Differential: Configure swing settings for tighter or wider temperature control
• Remote Access Ready: Compatible with external WiFi module for online programming
• Multi-Thermostat Setup: Capable of being managed alongside other Pro1 networked units

System Suitability

Suitable for installations involving standard forced air systems, heat pumps with no auxiliary heat, and compatible gas or electric furnace controls. Consult equipment documentation for integration requirements prior to setup.
