2 inch PVC DWV 90 Degree Long Sweep Elbow Plastic x Plastic

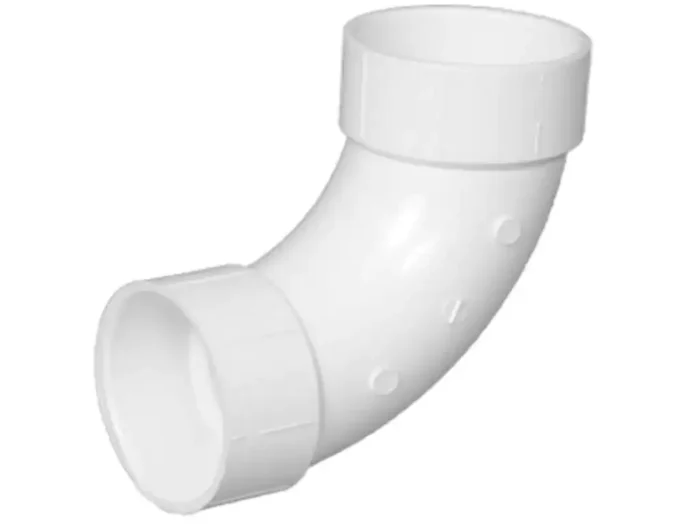

2″ PVC DWV 90° Long Sweep Elbow – Long Radius for Improved Hydraulic Flow

The 2″ PVC DWV 90° Long Sweep Elbow is designed for directional changes in non-pressurized drainage, waste, and vent (DWV) systems. Its long radius configuration helps maintain consistent flow characteristics by minimizing velocity loss and turbulence at turns.

Manufactured from rigid Schedule 40 PVC, this fitting offers corrosion resistance and structural reliability in gravity-fed applications. It supports solvent-weld joint assembly and is suitable for use in both horizontal and vertical system designs where reduced friction and code compliance are required.

• ✅ Long Sweep Design – Provides a gradual directional change to optimize flow and reduce clog risk in DWV systems.
• ✅ Solvent Weld Socket Ends – Compatible with standard 2″ PVC DWV pipe for reliable, permanent joint connections.
• ✅ Non-Metallic Construction – Chemically resistant and impervious to rust, scale, or pitting under typical sanitary system conditions.

Technical Specifications

• Material: PVC (polyvinyl chloride), Schedule 40
• Nominal Size: 2 inches
• Connection: Socket x Socket (Plastic x Plastic)
• Bend: 90 degrees, long sweep pattern
• Standards: Conforms to ASTM D2665 and ASTM D3311

Installation requires the use of PVC primer and solvent cement. Joint preparation must ensure full insertion and alignment to meet structural and code expectations. This elbow is frequently used where plumbing codes specify long radius fittings—particularly for horizontal to vertical transitions or to reduce solids buildup.

Application Use

Common in both residential and commercial DWV layouts, this elbow is installed in locations such as wall cavities, mechanical rooms, and subgrade drainage runs. The long sweep geometry supports steady downhill flow, improving performance in systems with multiple fixture branches or extended runs.

Material Performance

PVC DWV fittings provide high resistance to common chemical agents and are unaffected by moisture, electrolysis, or biological growth—making them suitable for diverse installation environments.

For drainage applications requiring smooth directional flow with minimal hydraulic disruption, the 2″ PVC DWV 90° Long Sweep Elbow offers a code-compliant, field-proven solution. Its extended arc geometry improves flow efficiency and supports reliable long-term system performance.
