2 inch Flexible Banded Pipe Coupling Connects Cast Iron PVC Copper Steel or Lead Pipe

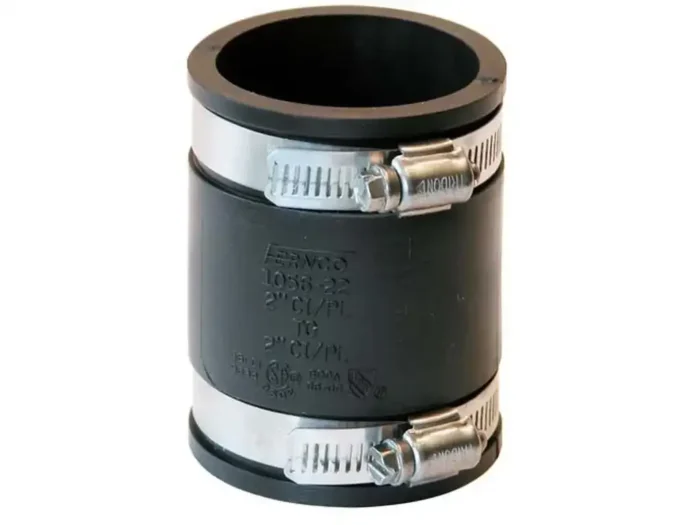

Fernco 1056-22 Flexible Banded Coupling – For Secure Transitions Between Dissimilar Pipe Materials

The Fernco 1056-22 Flexible Banded Coupling is a high-performance plumbing component engineered for joining 2-inch nominal pipes of varying materials. Designed to meet the demands of professional-grade installations, this coupling provides a secure, watertight seal and mechanical stability where traditional rigid fittings fall short.

Constructed for code-compliant use in above- and below-grade drainage, waste, and vent (DWV) systems, the 1056-22 features a stainless steel band clamp assembly and a durable elastomeric sleeve, ensuring compatibility across cast iron, PVC, steel, copper, and lead piping systems.

Key Performance Attributes

• ✅ Multi-Material Compatibility – Transitions between dissimilar piping materials with consistent pressure sealing integrity.
• ✅ Stainless Steel Shield and Clamps – Incorporates 300-series stainless bands to maintain shape and support under load and thermal cycling.
• ✅ Neoprene Sleeve – Resilient elastomer resists microbial growth, acids, alkalis, and chemical degradation in harsh DWV environments.
• ✅ ASTM C1460 & CSA B602 Compliant – Approved for use in regulated plumbing systems and meets national and international mechanical code standards.

Installation and Use

The Fernco 1056-22 coupling is designed for straightforward installation using a torque wrench to evenly tighten stainless band clamps to recommended specifications (60 in-lbs). No primer or solvent welding is required. It accommodates slight pipe misalignment and movement due to its flexible construction, making it particularly useful in retrofit and repair applications.

Technical Specifications

• Model: 1056-22
• Pipe Size: 2″ nominal (fits pipes with 2.25″–2.50″ OD range)
• Band Material: Type 301 stainless steel
• Sleeve Material: Neoprene, ASTM C564
• Temperature Range: -30°F to 140°F continuous
• Certification: IAPMO Listed, UPC Certified, ASTM C1460, CSA B602

Applications

• ✅ Horizontal and vertical DWV pipe transitions
• ✅ Retrofit projects where pipe materials vary
• ✅ Commercial and residential drainage systems
• ✅ Areas requiring vibration absorption or joint flexibility

Did You Know?

Shielded couplings like the Fernco 1056-22 are often specified by plumbing inspectors for joining pipes in load-bearing or structural concrete pours due to their enhanced support and code compliance over unshielded alternatives.

The Fernco 1056-22 Flexible Banded Coupling is the trusted solution when code compliance, versatility, and longevity are required. Ideal for mission-critical pipe transitions, it’s a staple in professional toolkits across residential, industrial, and institutional plumbing environments.
