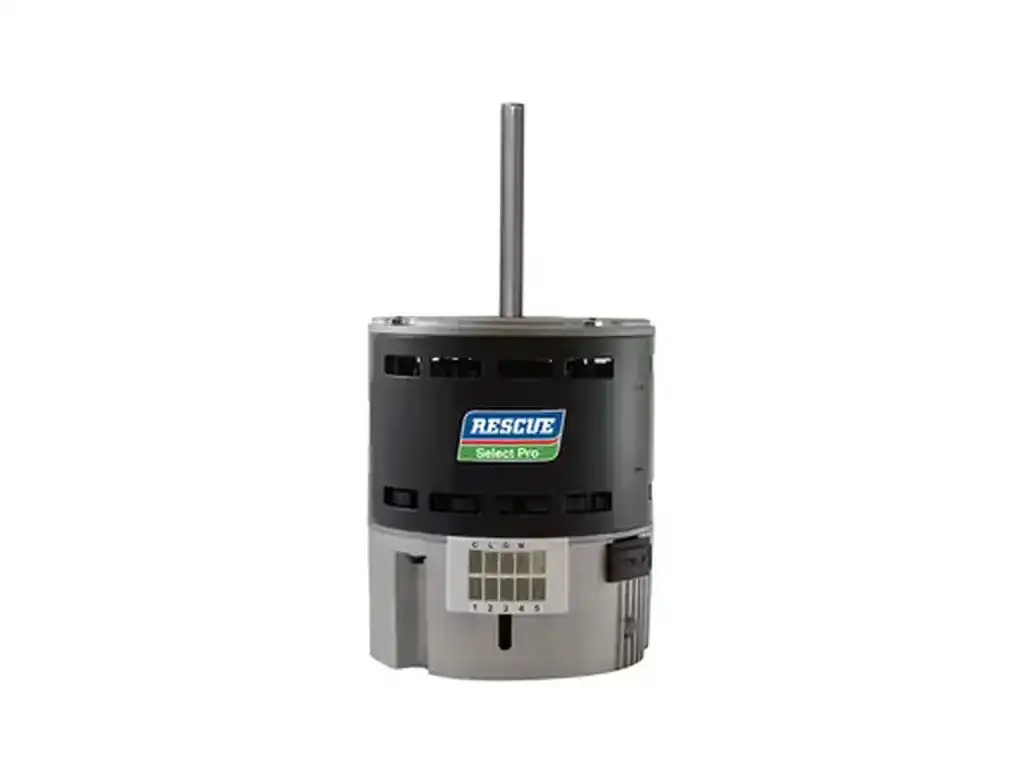

1/3 – 1 hp,115/208/230V Single Phase ECM Variable Speed Blower Motor

U.S. Motors 5860 – Rescue EZ16™ Universal ECM Replacement Motor with Variable Speed Performance

The Rescue EZ16™ Universal ECM Replacement Motor (Model 5860) is an electronically commutated motor (ECM) engineered for high-efficiency blower applications in HVAC systems. Rated for 1/3 to 1 horsepower, this variable-speed motor is suitable for retrofitting a wide range of residential and light commercial furnace and air handler platforms. Integrated surge and moisture protection enhance its field durability in demanding electrical and environmental conditions.

This motor supports multiple voltage inputs (115/208/230V) in a single-phase configuration and is equipped with 6,000V surge protection. Its advanced ECM technology allows for precise airflow control while maintaining quiet, energy-efficient operation throughout variable load conditions.

Performance and Protection Features

• ✅ Universal Fitment – Designed to replace a broad spectrum of OEM ECM motors in standard HVAC blower assemblies.
• ✅ Multi-Voltage Support – Operates across 115V, 208V, and 230V single-phase input with automatic detection.
• ✅ Integrated Surge Protection – Rated to withstand electrical transients up to 6,000 volts, protecting motor control circuits.
• ✅ Sealed Electronics – Engineered to withstand moisture ingress and reduce failure in high-humidity environments.
• ✅ Variable Speed Operation – ECM technology adjusts airflow based on system demand for optimal performance and energy savings.

Technical Specifications

• Model: 5860
• Motor Type: ECM – Electronically Commutated Motor
• Horsepower Range: 1/3 – 1 HP
• Voltage: 115/208/230V (Single Phase)
• Surge Rating: 6,000 Volts
• Control: Variable Speed Blower Applications

Installation Notes

The EZ16™ is delivered with preconfigured connection points compatible with a variety of OEM control boards and harnesses. Installation should be carried out by certified HVAC technicians to ensure compatibility with system airflow requirements, proper phasing, and electrical compliance. Commissioning requires standard ECM diagnostic tools and airflow validation procedures.

Job Site Compatibility

This motor is suitable for direct replacement or system upgrades where energy efficiency and adaptive airflow are required. The universal design simplifies truck inventory management and reduces the need for model-specific stocking. Common use cases include blower motor retrofits in PSC-to-ECM conversion projects or ECM replacements where OEM models are obsolete or unavailable.

Operational Advantages

• ✅ High-Efficiency Output – Reduces system electrical load under partial speed operation.
• ✅ Low Noise Performance – Optimized motor profile minimizes audible vibration in ducted systems.
• ✅ Service-Friendly Configuration – Compatible with common mounting brackets and standard shaft diameters.
• ✅ Reduced Downtime – Quick installation and universal application minimize field service disruption.
